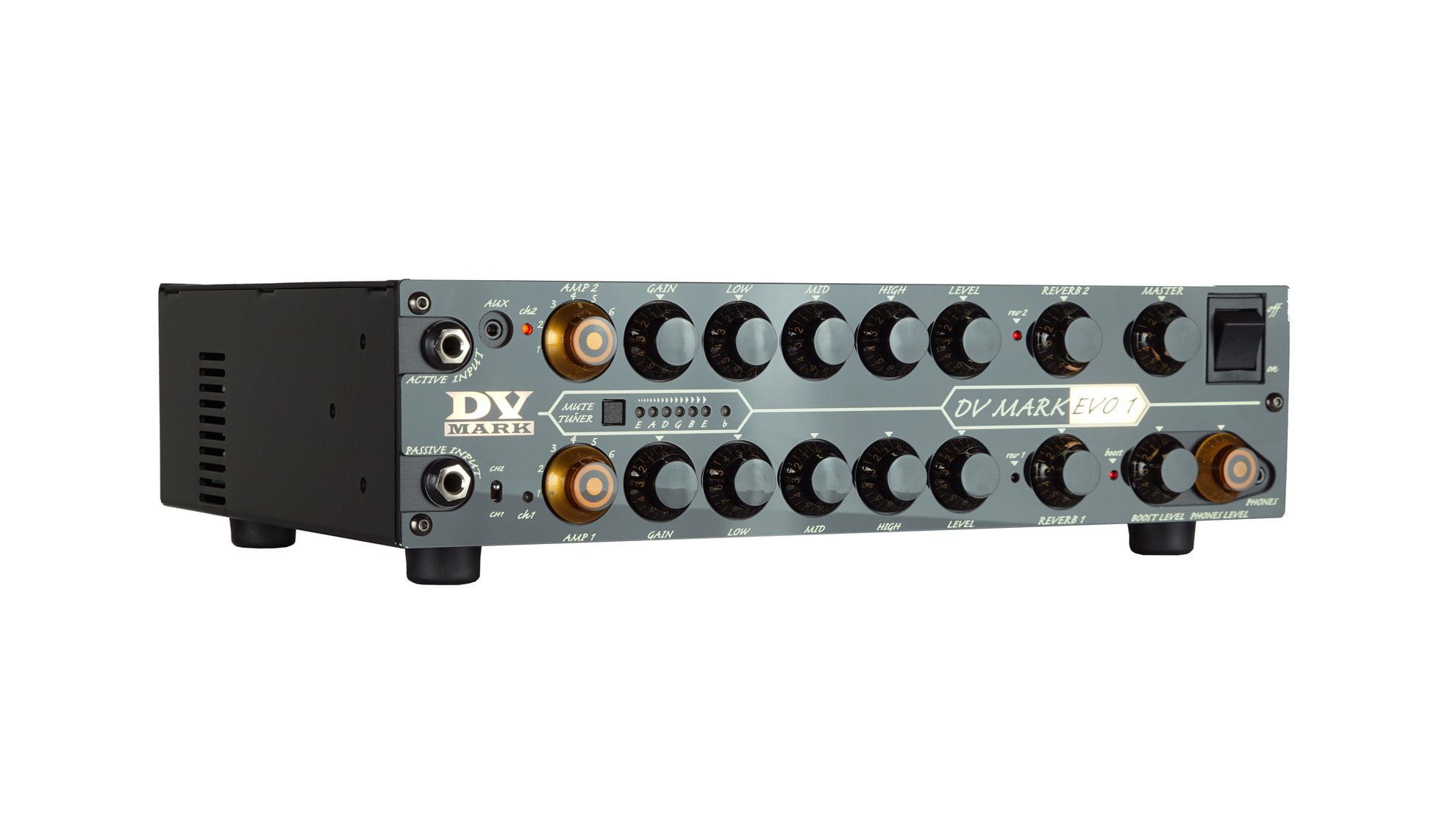

DV Mark EVO1 Guitar Modeling Head

DV Mark EVO 1 Dual-Channel 250W Digital Guitar Modeling Head

The DV Mark EVO 1 is an innovative, high-power 250W digital guitar modeling head built for the modern touring musician. By completely removing complicated digital screens and sub-menus, the EVO 1 combines a classic knob-based amp interface with advanced digital tone modeling, delivering zero-latency performance and the organic dynamic response of a true tube amplifier.
• True Dual-Channel Mixing: Features two completely independent channels. You can run Channel 1 (optimized for passive electronics) or Channel 2 (optimized for active pickups), or mix both channels simultaneously for rich, layered tones.
• 6 Virtual Amps Per Channel: Each channel is equipped with a physical 6-way selector knob providing instant hardware access to iconic amplifier styles—ranging from pristine boutique cleans to heavy high-gain distortion.
• Fully Customizable via Software: Easily connect the head to your PC or Mac via USB to swap out virtual amp models, select digital reverb types, or assign custom speaker/cabinet emulations directly to the XLR output.
• Powerful MPT Technology: Driven by DV Mark’s proprietary 250W RMS @ 4 Ohms (150W RMS @ 8 Ohms) power section, guaranteeing immense clean headroom and punchy, stage-filling dynamics.
• Advanced MIDI & Pro Routing: Includes independent Effects Loops for each channel, a dedicated Boost control, an integrated digital tuner with a silent mute function, and full MIDI integration for custom pedalboard mapping.
________________________________________
Technical Specifications:
• Output Power: 250W RMS @ 4 Ohms / 150W RMS @ 8 Ohms (MPT Power Amp)
• Channels: 2 Independent Channels (with 6 Virtual Amps per channel)
• Inputs: Input 1 (Passive), Input 2 (Active), Aux In (3.5mm), 2x FX Returns
• Outputs: 1x Speakon/Jack Combo Speaker Out, 2x Mono 1/4′ Jacks, Balanced XLR Line Out (with Cab Emulator), 3.5mm Phones
• Digital I/O: USB Type B (for EVO 1 Remote Software), MIDI DIN 5-poles
• Dimensions (W x H x D): 36.0 cm x 10.0 cm x 25.4 cm (14.18” x 3.94” x 10”)
• Weight: 3.2 kg / 7.05 lbs [1]
