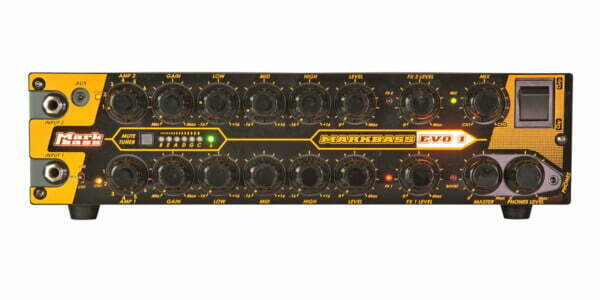

The Markbass EVO1 head is the result of the mix between classic and advanced technology evolution to allow bassists to have not only just a ‘gorgeous’ bass sound, but always the ‘right’ sound… no matter which genres and techniques you’re playing!!! It offers six AMPS tone choices for each of the two channels, clean and distorted.

Bass players have always been inspired by the possibility to mix two amplifiers tones and to blend clean and distorted sounds as Jaco Pastorius did back in the years. With the Markbass EVO 1 that’s possible, opening many more sound options experimenting two amps playing simultaneously.

Both channels feature classic standard amp controls interface and one effect each (you can update AMPs and effects picking and downloading your favorite ones from our website), MIDI In port, on board tuner, aux in and headphones out, FX loops, XLR Line Outs, and a powerful 500W MPT (Mark Proprietary Technology) power amp.

TECHNICAL FEATURES
INPUTS
INPUT 1: impedance 1M?
INPUT 2: impedance 1M?
AUX IN: stereo mini-jack 3.5mm
RETURN 1 / RETURN 2: mono jack 1/4” (50K?)
USB: type B
MIDI: DIN 5 poles

OUTPUTS
SPEAKER OUTPUT (4ohms minimum load)
two mono jack 1/4” + one Speakon (in parallel)
PHONES : stereo mini-jack 3.5mm
SEND 1 / SEND 2: mono jack 1/4” (1K?)
LINE OUT 1: XLR male balanced
LINE OUT 2: XLR male balanced

CHANNELS
TWO (with six Virtual AMPs per channel) + MIX mode

EQUALIZATION (PER CHANNEL)
LOW-MID-HIGH

CONTROLS
GAIN (per channel)
Amps Selection: 6 for CH1 / 6 for CH2
LEVEL (per channel)
FX 1
FX 2
MIX
MASTER
PHONE LEVEL
BOOST

MIDI FUNCTIONS
Switch CH1, CH2, MIX
FX1 ON/OFF, FX2 ON/OFF
BOOSTER ON/OFF
MUTE/TUNER
Controllable by the optional Markbass EVO1 Controller / MIDI Pedalboard

OTHER
Channels Switch / Mix
GND Lift switches, PRE/POST MIX (LINE OUTs)
TUNER (with MUTE function)
440Hz / half step down / whole step down modes

DIMENSIONS
14.18”/ 36 cm (w); 3.94”/ 10 cm (h); 10”/ 25.4 cm(d)

WEIGHT
7.05 lbs / 3.2 Kg

OUTPUT POWER (MPT POWER AMP)
500W RMS @ 4 ohms, 300W RMS @ 8 ohms

POWER REQUIREMENT
100V; 120V; 230V; 240V 50/60Hz (Voltage is factory preset according to region of sale).

Markbass amps/combos are manufactured to be sold and used in the country of purchase, and are factory preset to that country’s voltage. Due to homologation issues, the voltage may not be changed.
