Mxr M292 Carbon Copy Deluxe Analog Delay

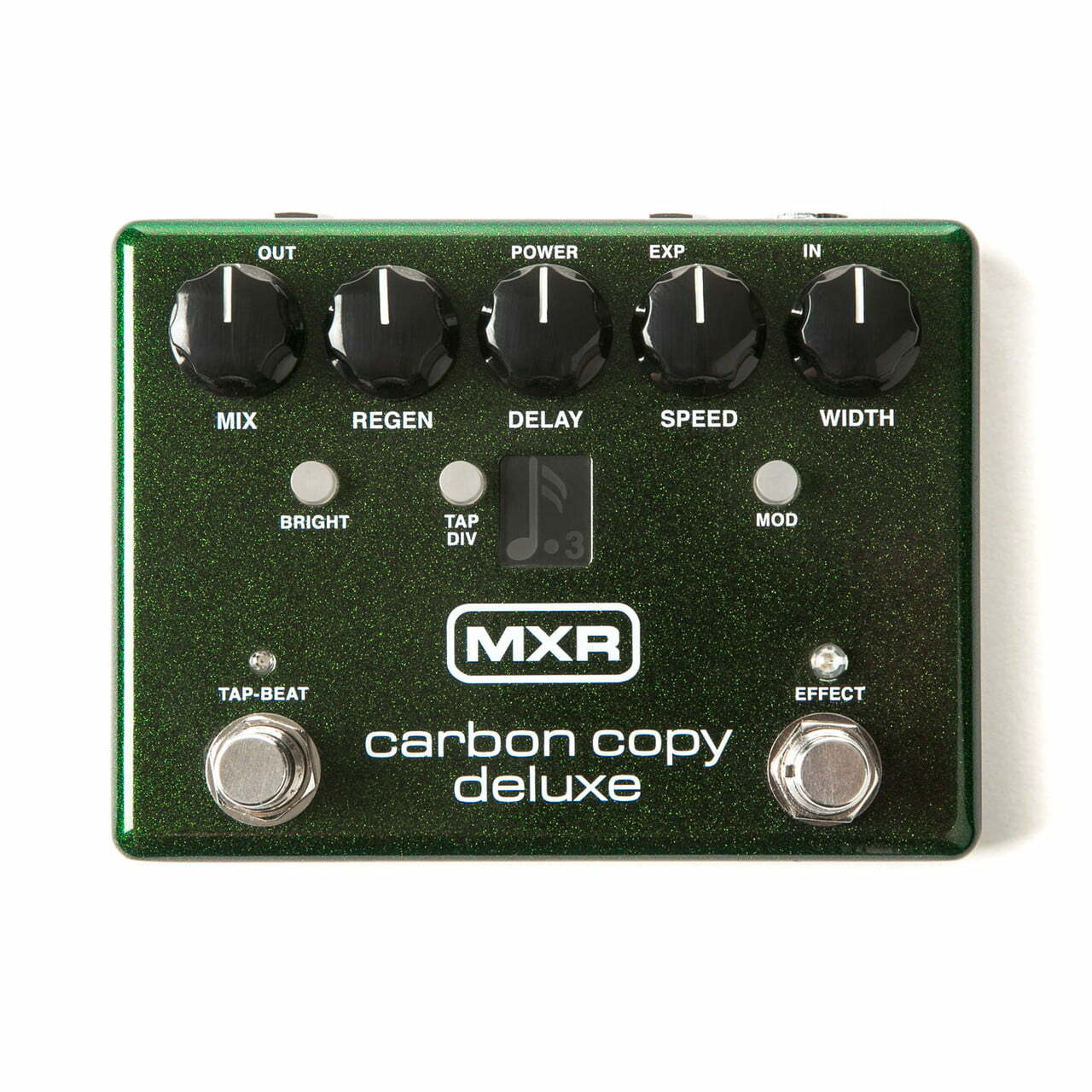

MXR M292 Carbon Copy Deluxe Analog Delay Pedal
Description
The MXR M292 Carbon Copy Deluxe Analog Delay updates the warmth and organic tone of the world-renowned original Carbon Copy for modern gigging and studio needs. Powered by eight bucket-brigade (BBD) chips, this deluxe version doubles the delay time up to a massive 1.2 seconds and adds highly requested features like a dedicated tap tempo footswitch, programmable presets, and selectable subdivision options.
With an onboard Bright switch, players can instantly toggle between the dark, dark-ambient repeats of the original pedal and the vibrant, high-frequency articulation of the Carbon Copy Bright version. From vintage slapback echoes to sprawling spacey soundscapes, the Carbon Copy Deluxe is the ultimate analog delay workstation for demanding guitarists.
Key Features
• True Analog Signal Path: Uses premium bucket-brigade technology to deliver authentic, warm, and natural analog delay degradation.
• Extended Delay & Tap Tempo: Offers up to 1200ms of delay time, fully controllable via a dedicated Tap-Beat footswitch for perfect rhythmic precision during live playing.
• Dual Sound Profiling (Original & Bright): Includes a dedicated Bright switch to instantly change the core character from standard warm analog warmth to a crisp, high-end emphasized tone.
• Front-Panel Modulation Controls: Move past internal trim pots—the Deluxe puts dedicated Speed and Width controls directly on the faceplate to dial in lush tape-chorus modulation on the fly.
• Tap Subdivisions Screen: A bright digital display cycles through 4 tap tempo subdivisions: Dotted 8th, 8th, Triplet, and 16th notes.
• Expression Pedal Support: Connect an external expression pedal or a tap switch via the EXP jack to seamlessly morph between two programmable presets or control parameters in real time.
Technical Specifications
• Pedal Type: Analog Delay with Modulation
• Circuitry: 100% Analog (Bucket-Brigade Technology)
• Delay Time: 40 ms to 1200 ms (1.2 Seconds)
• Modulation Speed: 0.1 Hz to 10 Hz
• Bypass Mode: True Hardwire Bypass
• Inputs: 1 x 1/4′ Mono Jack (Instrument level)
• Outputs: 1 x 1/4′ Mono Jack
• Other I/O: 1 x 1/4′ TRS Jack (Expression / External Tap Control)
• Internal Controls:
o Input Gain Switch: Optimizes input level for standard guitar pickups or high-level line-in signals.
o Dry Kill Switch: Removes the dry signal from the output mix to provide 100% wet signal for parallel effects loops or studio mixing.
• Input Impedance: 1 M?
• Output Impedance: 1 k?
• Power Consumption: 22 mA (Selectable LEDs OFF) / 44 mA (All Selectable LEDs ON)
• Power Requirement: 9V DC Center Negative Power Supply (sold separately) or 1 x 9V Battery
• Housing: Medium-size heavy-duty metal enclosure
• Dimensions (W x D x H): 124 mm x 92 mm x 54 mm (including knobs)
• Weight: 396 g (without battery)
Package Includes
• 1x MXR M292 Carbon Copy Deluxe Analog Delay Pedal
• 1x User Manual & Quick Start Guide
