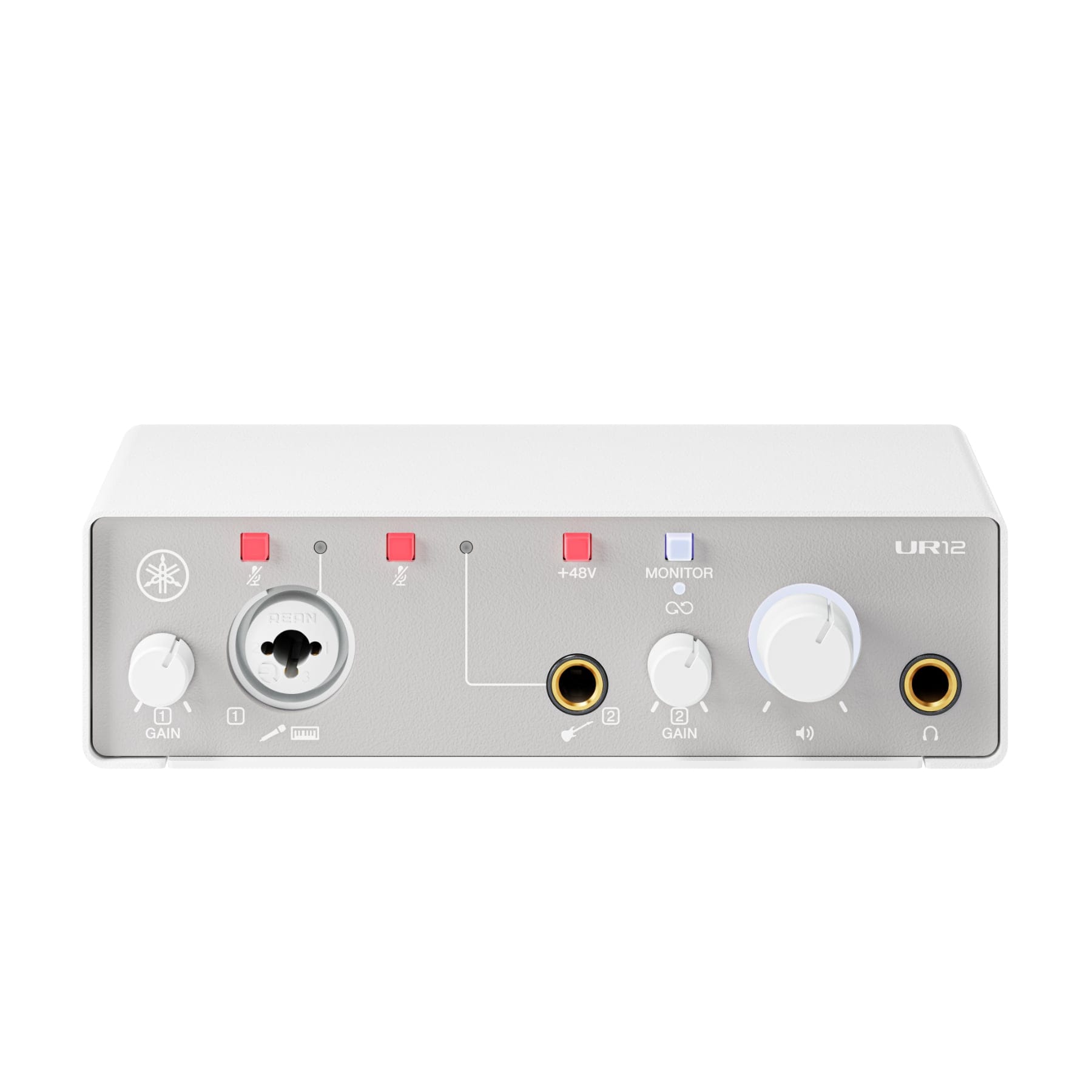

Yamaha UR12MK3 Audio interface

Yamaha UR12MK3 2×2 USB-C Audio Interface
The Yamaha UR12MK3 is a compact, ultra-rugged 2-in/2-out USB-C audio interface designed for aspiring musicians, podcasters, and content creators. Combining 24-bit/192 kHz high-resolution audio with a premium UR microphone preamp, it offers seamless plug-and-play operation for pristine studio recordings and effortless live streaming.
________________________________________
Key Features
• High-Resolution Sound: Studio-grade 24-bit/192 kHz audio resolution with 106 dB input dynamic range.
• Premium UR Mic Preamp: Delivers crystal-clear, transparent vocal recordings with switchable +48V phantom power.
• Dedicated Hi-Z Input: Easily connect your guitar or bass directly to record crisp instrument tracks.
• Seamless Loopback: Built-in loopback function merges incoming audio with computer playback for easy live streaming.
• Latency-Free Monitoring: Hardware direct monitoring switch lets you listen to your input signal with zero delay.
• Cross-Platform Compatibility: Fully compatible with Windows, macOS, and iOS/iPadOS devices.
• Robust Metal Casing: Compact, lightweight, and highly durable metal housing optimized for mobile use.
________________________________________
Specification Details
Type USB-C Audio Interface (USB 2.0 protocol)
Simultaneous I/O 2 Input channels / 2 Output channels
Audio Resolution 24-bit / 192 kHz
Dynamic Range Input: 106 dB (MIC/LINE/Hi-Z) | Main Output: 107 dB
Gain Range 54 dB (Hi-Z: 39.5 dB)
Microphone Preamp 1 x UR Preamp with +48 V Phantom Power
Analog Inputs 1 x XLR / 6.3 mm (1/4′) Jack Combo (Mic/Line) with Mute button
1 x 6.3 mm (1/4′) TRS Jack (Hi-Z Instrument)
Analog Outputs 2 x 6.3 mm (1/4′) TRS balanced Line Outputs
1 x 6.3 mm (1/4′) Stereo Headphone Output (Main level control)
Busses & Mixing 1 x MIX (Stereo) bus | 2 Mono + 1 Stereo Loopback input channels
Connectivity Ports 1 x USB-C (Data/PC/Mac) | 1 x USB-C (5V DC Power input for iOS)
Power Requirements USB bus-powered (PC/Mac) or External 5V DC (0.5 A / 2.5 W)
Dimensions (W x H x D) 158 mm x 47 mm x 102 mm (6.2′ x 1.9′ x 4.0′)
Net Weight 450 g (1.0 lb)
________________________________________
System Requirements & Compatibility
• Operating Systems: Windows 10 / 11, macOS, iOS / iPadOS
• Driver Support: ASIO, Core Audio, or WDM compatible
Package Contents
• Yamaha UR12MK3 Audio Interface
• USB-C to USB Type-A cable
• Steinberg Cubase AI (Download Version)
• Steinberg Cubasis LE DAW app (for iOS)
• Steinberg Plus license card & MixKey (Beta)
