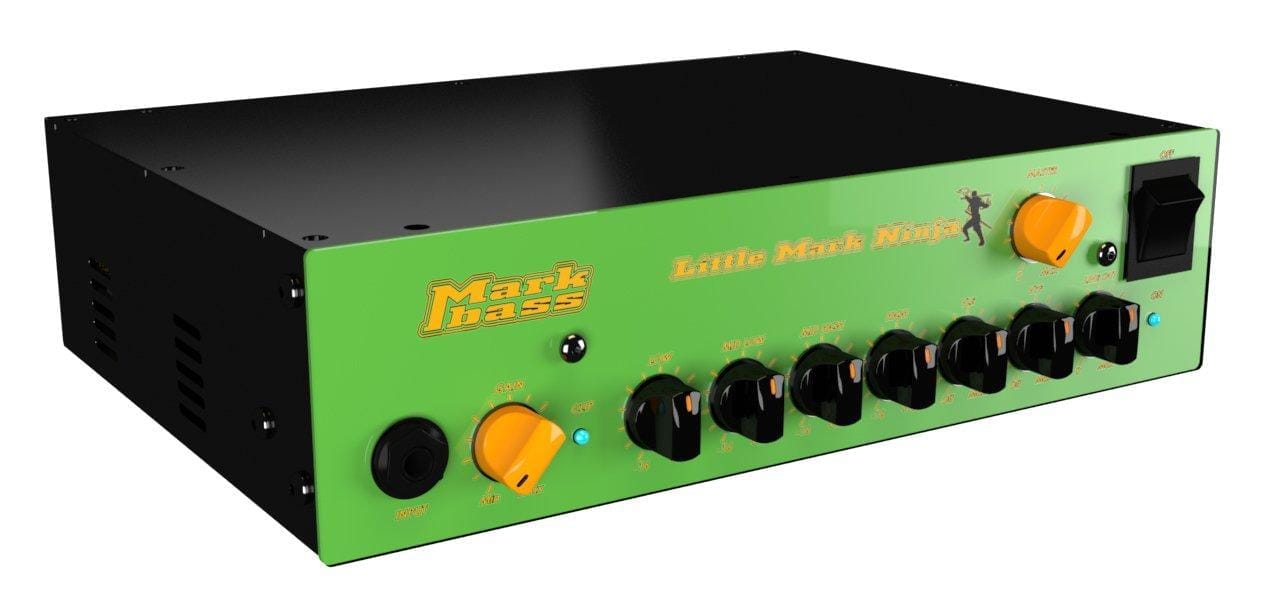

MarkBass Little Mark NINJA Bass Amp Head

TECHNICAL FEATURES
INPUTS
INPUT: impedance 500 Kohm, max. voltage 15 Vpp
EFFECT RETURN: impedance 33 Kohm, max. voltage 10 Vpp
CONTROLS
GAIN: -60 dB to +23 dB range
MASTER VOLUME
LINE OUT LEVEL
GROUND LIFT (switch on rear panel)
PRE/POST EQ (switch on rear panel)
EQUALIZATION
LOW: center frequency: 40 Hz; level: ±16 dB
LOW MID: center frequency: 360 Hz, level: ±16 dB
HIGH MID: center frequency: 800 Hz, level: ±16 dB
HIGH: center frequency: 10 kHz, level: ±16 dB
VPF (Variable Pre-shape Filter): center frequency 380 Hz
VLE (Vintage Loudspeaker Emulator): frequency range 250 Hz-20 kH
OUTPUTS
LINE OUT: balanced XLR, max. voltage 20 Vpp
EFFECT SEND: unbalanced, max. voltage 20 Vpp (pre-EQ)
TUNER OUT: unbalanced, max. voltage 2 Vpp
SPEAKER OUT: speakon
OTHERS
WEIGHT: 6.39 lbs / 2.9 Kg
WIDTH: 10.87 in. / 27.6 cm
DEPTH: 9.84 in. / 25 cm
HEIGHT: 3.27 in. / 8.3 cm
OUTPUT POWER: 1000W RMS @ 4 ohms / 600W RMS @ 8 ohms
POWER REQUIREMENT:100/120V; 230V; 240V – 50/60Hz (Voltage is factory preset according to region of sale)
Minimum ohm load for all Markbass heads is 4 ohms.
Markbass amps/combos are manufactured to be sold and used in the country of purchase, and they are factory preset to that country’s voltage. Due to homologation issues, the voltage may not be changed.
Rack ears do not come included with this head.
